Fir

This house style is from Scotframe's Scotframe Original Brochure - Bungalow homes
Fir

Scotframe Original Brochure

3 Bedroom
Bungalow

Floor Area:
134.58m2

Frontage:
15.3m

Ridge Height:
5.193m

Select to view large version:

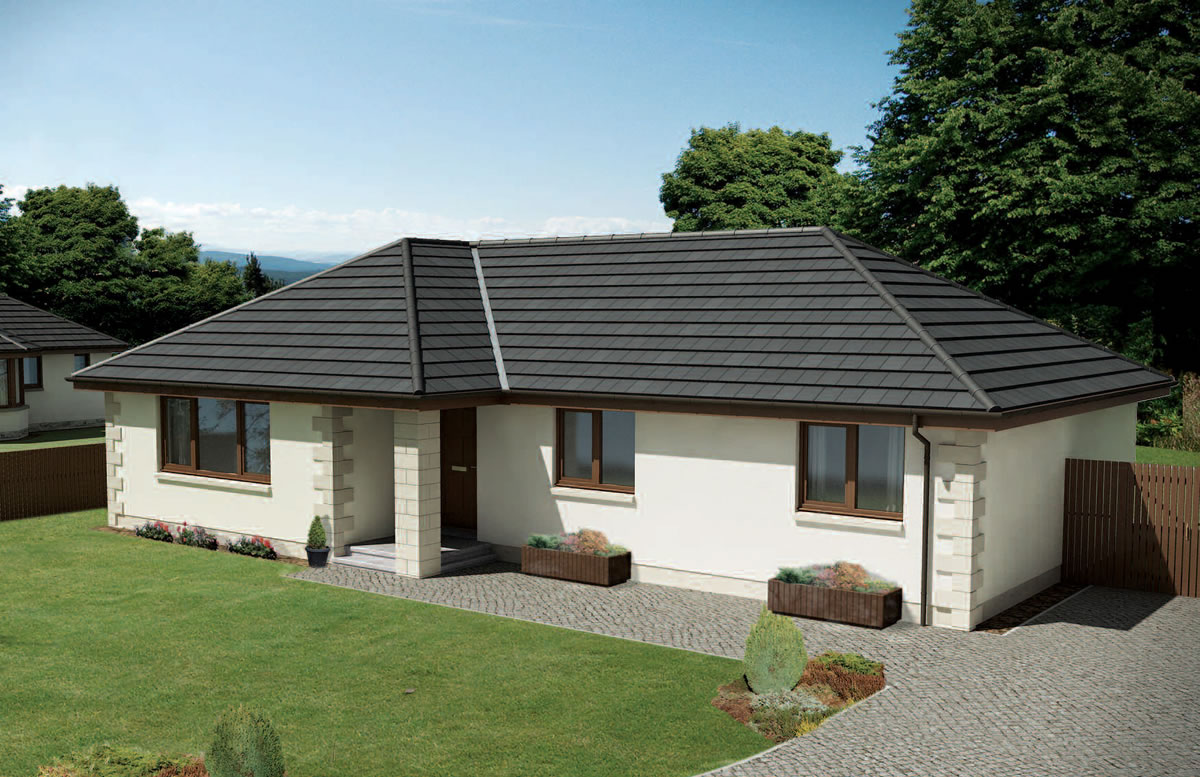

Fir
Fir (Option one) Ground Floor Plan
Fir (Option two) Ground Floor Plan

Option 1



Floor Area: 134.580m2 (1448ft2)
Frontage: 15.300m (50’2″)

ROOM METRES FEET
Lounge 5.370 x 4.100 17’7″ x 13’5″
Dining 4.210 x 2.900 13’10” x 9’6″
Family/Garden 6.769 x 3.308 22’2″ x 10’10”
Kitchen 3.570 x 2.130 11’9″ x 7’0″
Utility 2.870 x 1.600 9’5″ x 5’3″
Bedroom 1 3.880 x 3.000 12’9″ x 9’10”
En-Suite 3.000 x 1.170 9’10” x 3’10”
Bedroom 2 3.810 x 2.920 12’6″ x 9’7″
Bedroom 3 3.370 x 2.770 11’1″ x 9’1″
Bathroom 3.000 x 2.130 9’10” x 7’0″



Option 2

Floor Area :141.060m2 (1518ft2)
Frontage: 16.200m2 (53’2″)

ROOM METRES FEET
Lounge 5.370 x 4.100 17’7″ x 13’5″
Dining 4.210 x 2.900 13’10” x 9’6″
Family/Garden 6.769 x 3.308 22’2″ x 10’10”
Kitchen 3.570 x 2.130 11’9″ x 7’0″
Utility 2.870 x 1.600 9’5″ x 5’3″
Bedroom 1 3.570 x 3.070 11’9″ x 10’1″
En-Suite 2.100 x 1.270 6’11” x 4’2″
Bedroom 2 3.210 x 3.070 10’6″ x 10’1″
Bedroom 3 3.230 x 2.850 10’7″ x 9’4″
Bedroom 4 2.850 x 2.470 9’4″ x 8’1″
Bathroom 2.850 x 1.710 9’4″ x 5’7″



Option 3

Floor Area: 145.380m2 (1564ft2)
Frontage: 16.800m2 (551)



ROOM METRES FEET
Lounge 5.370 x 4.100 17’7″ x 13’5″
Dining 4.210 x 2.900 13’10” x 9’6″
Family/Garden 6.769 x 3.308 22’2″ x 10’10”
Kitchen 3.570 x 2.130 11’9″ x 7’0″
Utility 2.870 x 1.600 9’5″ x 5’3″
Bedroom 1 4.100 x 3.020 13’5″ x 9’11”
En-Suite 2.170 x 1.050 7’1″ x 3’5″
Bedroom 2 33.280 x 3.020 10’9″ x 9’11”
Bedroom 3 3.300 x 2.900 10’10” x 9’6″
Bedroom 4 2.900 x 2.630 9’6″ x 8’8″
Bathroom 2.900 x 2.080 9’6″ x 6’10”

*The approximate ridge heights shown, assume a finished floor to ground level of 400mm and are based on a roof pitch of 30°.

Note 1: Some finishes, as illustrated, may not represent our standard specification. Please ask for details.

Note 2: The G, shown on some house type floor plans, indicates a glazed door which is included in the kit price.

*All house designs and plans shown in this homes portfolio are copyright of Scotframe 2008.
Reproduction in any form, without the written consent of Scotframe Timber Engineering Ltd. is strictly prohibited.
