Oak

Go back to: Scotframe Original Brochure - Two Storey homes
Oak

Scotframe Original Brochure

5 Bedroom
Two Storey

Floor Area:
176.31m2

Frontage:
10.8m

Ridge Height:
7.853m

Select to view large version:

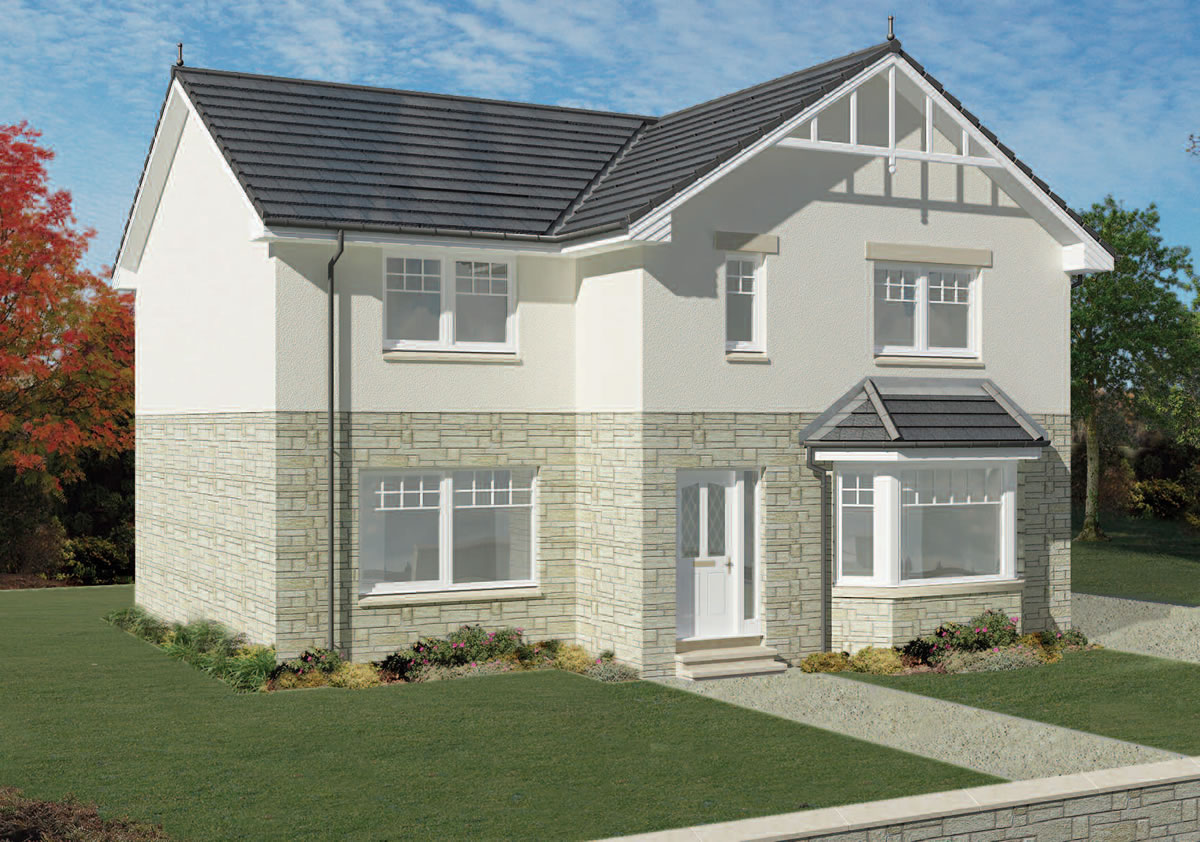

Oak
Oak Ground Floor Plan

ROOM METRES FEET
Lounge 7.170 x 3.780 23’6″ x 12’5″
Dining 3.170 x 2.970 10’5″ x 9’9″
Family 4.530 x 2.630 14’10” x 8’7″
Kitchen/Breakfast 4.175 x 3.180 13’8″ x 10’5″
Utility 2.265 x 1.700 7’5″ x 5’7″
Shower 2.710 x 1.115 8’11” x 3’8″
Bedroom 1 4.000 x 3.400 13’1″ x 11’2″
Dressing 2.200 x 2.170 7’3″ x 7’1″
En-Suite 2.170 x 2.000 7’1″ x 6’7″
Bedroom 2 3.200 x 3.200 10’6″ x 10’6″
Bedroom 3 3.800 x 2.830 12’6″ x 9’4″
Bedroom 4 3.300 x 2.900 10’10” x 9’6″
Bedroom 5/Study 2.800 x 2.000 9’2″ x 6’7″
Bathroom 2.470 x 2.400 8’1″ x 7’10”

*The approximate ridge heights shown, assume a finished floor to ground level of 400mm and are based on a roof pitch of 30°.

The following features which are shown in the illustration are not included in our price list but are available, if required, at an additional cost.

These features are: The astragals to windows and gable features.

Note 1: Some finishes, as illustrated, may not represent our standard specification. Please ask for details.

Note 2: The G, shown on some house type floor plans, indicates a glazed door which is included in the kit price.

*All house designs and plans shown in this homes portfolio are copyright of Scotframe 2008.
Reproduction in any form, without the written consent of Scotframe Timber Engineering Ltd. is strictly prohibited.
