Waterstein

Go back to: Gaelic Range - One Three-Quarter Storey homes
Waterstein

Gaelic Range

5 Bedroom
One Three-Quarter Storey

Floor Area:
224.6m2

Frontage:
14.4m

Ridge Height:
8.08m

Select to view large version:

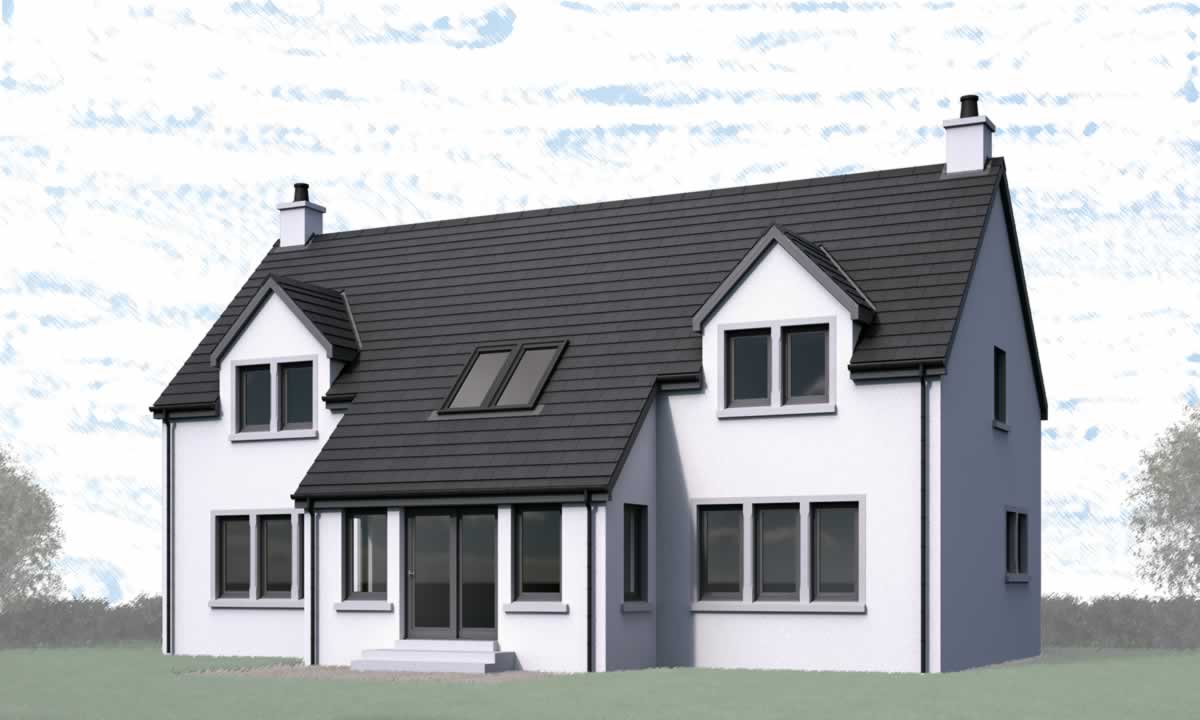

Waterstein
Waterstein Ground Floor Plan
Waterstein Sketched Ground Floor Plan
Waterstein First Floor Plan
Waterstein Sketched First Floor Plan

Room Sizes

ROOM METRES FEET
Ground Floor
Living Room 4.30m x 6.60m 14’1″ x 21’7″
Dining 4.80m x 6.10m 15’8″ x 20’0″
Kitchen 4.30m x 3.50m 14’1″ x 11’5″
Bedroom/Study 4.30m x 3.00m 14’1″ x 9’10”
Shower Room 2.40m x 1.70m 7’10” x 5’6″
Utility 2.30m x 4.50m 7’6″ x 14’9″
First Floor
Master Bedroom 4.30m x 5.00m 14’1″ x 16’4″
Private Bath & Shower Room 2.40m x 4.50m 7’10” x 14’9″
Bedroom 2 4.30m x 3.80m 14’1″ x 12’5″
Private Shower Room 1.10m x 2.60m 3’7″ x 8’6″
Bedroom 3 3.60m x 3.20m 11’9″ x 10’5″
Bedroom 4 4.30m x 2.70m 14’1″ x 8’10”
Bath & Shower Room 2.30m x 3.20m 7’6″ x 10’5″

T shaped staircase from dining hall leading up to 4 double bedrooms.

*The approximate ridge heights shown, assume a finished floor to ground level of 200mm and are based on a roof pitch of 45°.

All designs and plans shown are copyright of Scotframe 2016. Reproduction in any form, without the written consent of Scotframe Timber Engineering Ltd. is strictly prohibited.
